MV-600E/NC HYDRAULIC PRESS: CUSTOM-BUILT FOR THE MILITARY SECTOR

We present the MV-600E/NC four-column hydraulic press, specially designed for deep drawing and stamping tasks in the military sector. This press stands out for its robustness, 600-ton power, and complete customization to meet our client's most demanding requirements. Key Features: SIEMENS SIMATIC S7 1200 PLC and 7” HMI touchscreen to program power, cylinder stroke, speeds, and store up to 300…
admin
22 de October de 2024
Special manufacturing

HIDROGARNE “C” FRAME HYDRAULIC PRESS  Model CD 50E

Specifically designed to perform work involving deep-drawing, stamping, die-cutting, forming, etc. It works with hydraulic pressure lower than 320 bar to ensure the greater durability of the whole hydraulic system. Consist of an electro welded structure made solely of S355JR steel. They are stabilised and mechanized at the end of the structural welding process to ensure perfect parallelism and precision.…
admin
22 de October de 2024
Special manufacturing

HYDRAULIC PRESS CM-50E/NC WITH COLLABORATIVE ROBOTICS UR10E

Perfect combination of technology and flexibility with our special hydraulic press CM-50E/NC adapted to our customer's needs with collaborative robotics UR10E. This press, equipped with the SIEMENS KTP-700, offers precise stroke, pressure and speed adjustments: Approach speed: 42.5 mm/sec Working speed: 9 mm/sec Return speed: 57 mm/sec Piston stroke: 350 mm. A versatile cobot with a payload of 12.5 kg…
admin
22 de October de 2024
HidrogarneSpecial manufacturing

SPECIAL MANUFACTURING OF MOTORIZED HYDRAULIC PRESS WITH SLIDING FRAME AND MOVEABLE HEADSTOCK WITH A TABLE OF 10 METERS LONG – TL-100/10000-E model

The motorized hydraulic press with sliding frame and moveable headstock HIDROGARNE TL-400/6000-E TL-100/10000-E model is especially designed for the straightening of large volume electro welded structures and flame cut sheets. As all our T-series hydraulic presses, its structure is stabilised and machined at the end of the structural welding process to ensure perfect parallelism and precision. STRUCTURE AND TABLES Electro welded structure made…
HIDROGARNE
10 de September de 2020
HidrogarneSpecial manufacturing

CUSTOM MANUFACTURE OF A HYDRAULIC PRESS WITH 4 COLUMNS

HIDROGARNE hydraulic press mod. MV-800 E with four columns with a power of 800 Tn. Specially designed for drawing and cutting work. STRUCTURES AND TABLES It consists of three electrowelded blocks made exclusively of S355JR steel. It is stabilized and mechanized at the end of the welding process to guarantee perfect parallelism and precision. Calculated and designed with finite element…
HIDROGARNE
15 de May de 2020
HidrogarneSpecial manufacturing

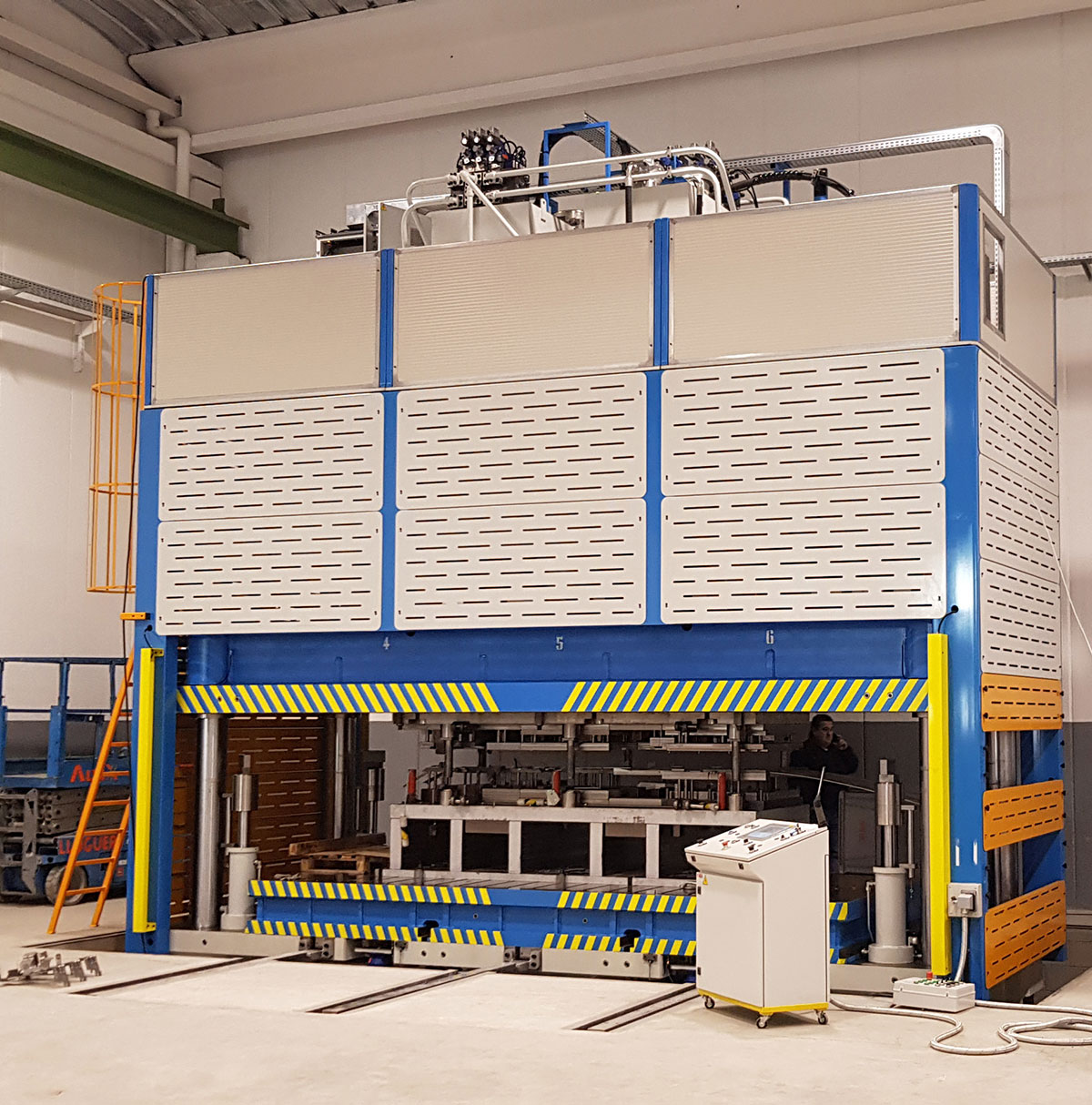

PERSONALIZED MANUFACTURING OF AN HYDRAULIC PRESS WITH 1000 TONS, FOUR COLUMNS AND SYNCHRO-electronics

Hydraulic press HIDROGARNE mod. Four-column MV-1000E CNC with a power of 1000 Tn synchro-electronics. Specially designed for pre-series adjusting and pre-series in progressive die-casting for the automotive sector, with a 4,750 x 2,250 mm die-casting capacity, ready to link to an automatic power line. DESCRIPTION Six double acting hydraulic cylinders of 167 TN. Four compensators of 50 tons. Bottom slotted…
HIDROGARNE
5 de March de 2020
HidrogarneSpecial manufacturing

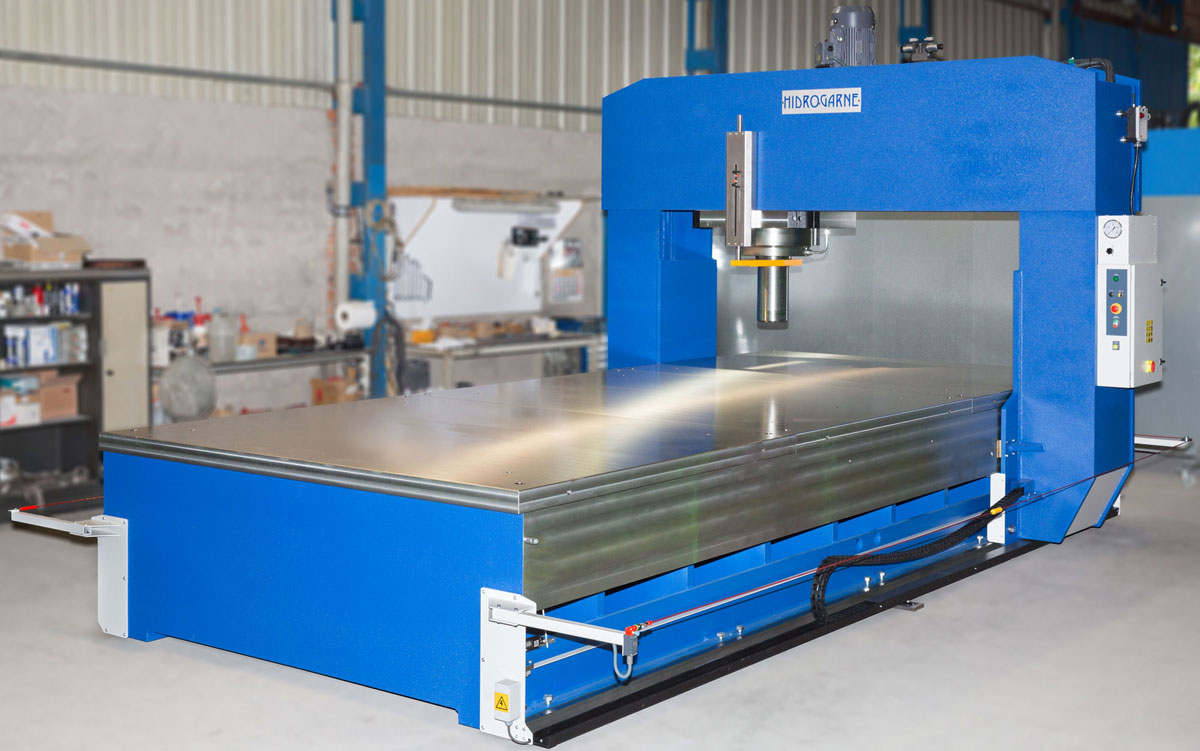

Special manufacturing of motorized hydraulic press with sliding frame and moveable headstock

We present you the HIDROGARNE motorized hydraulic press with sliding frame and moveable headstock TL-400/6000 model especially designed for the straightening of electro welded structures and flame cut sheets. Its design facilitates the loading and unloading of large volume parts, sheets or structures. It allows the different pressing points to be accessed without the need to move the part thanks to…
HIDROGARNE
21 de November de 2017
HidrogarneSpecial manufacturing

Personalized manufacturing of an hydraulic press to forming and die-cutting works

We present you the Hidrogarne hydraulic press, FDV-330 E model especially efficient in forming and die-cutting works. This hydraulic press has an electro-welded structure exclusively manufactured in S355JR steel. It is mechanized at the end of the welding process to ensure a perfect parallelism and precision. Calculated and designed with finite elements software and with 4 level structural coefficient. With…
HIDROGARNE
13 de October de 2017
HidrogarneSpecial manufacturing

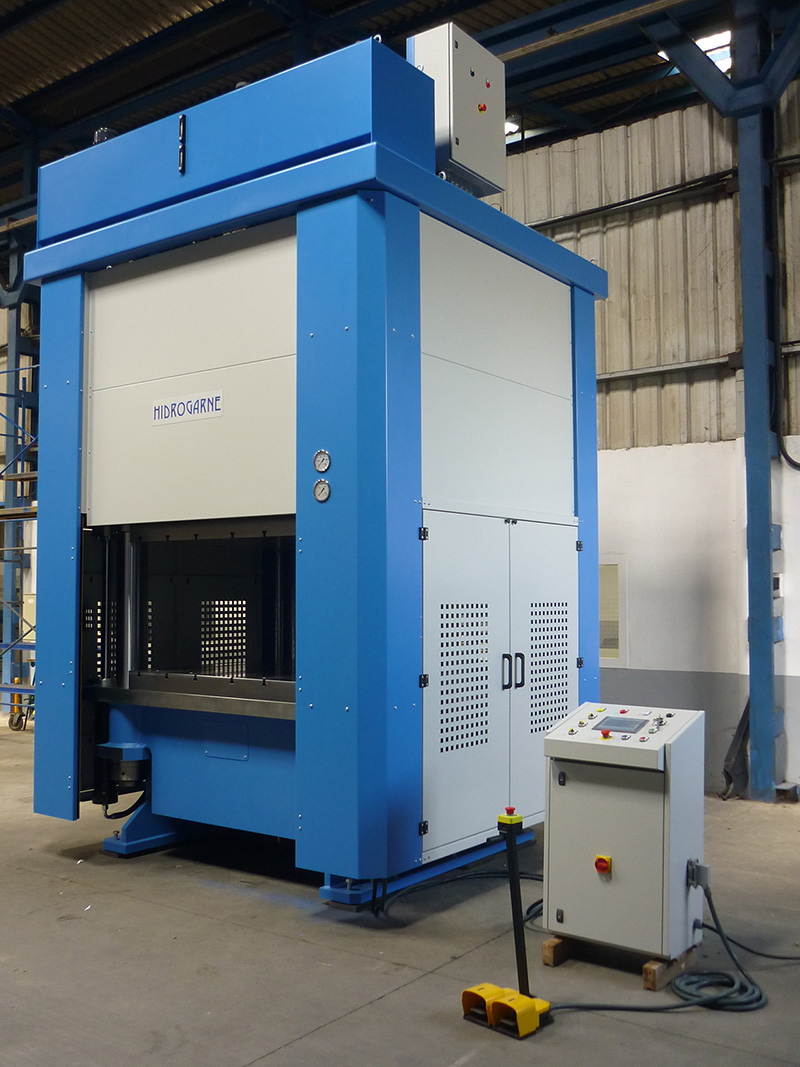

New personalized manufacturing of a rigid arch by segments hydraulic press

In Hidrogarne we have manufacture the special RV-2000E Hydraulic press, with a rigid arch by segments, especially efficient in elastic-define works with pieces of medium complexity. This press is manufactured with a special structure of rigid arch by segments, calculated and designed by finite software with level 5 structural resistance. With all of this, we can guarantee our high precision and…
HIDROGARNE
2 de October de 2017
