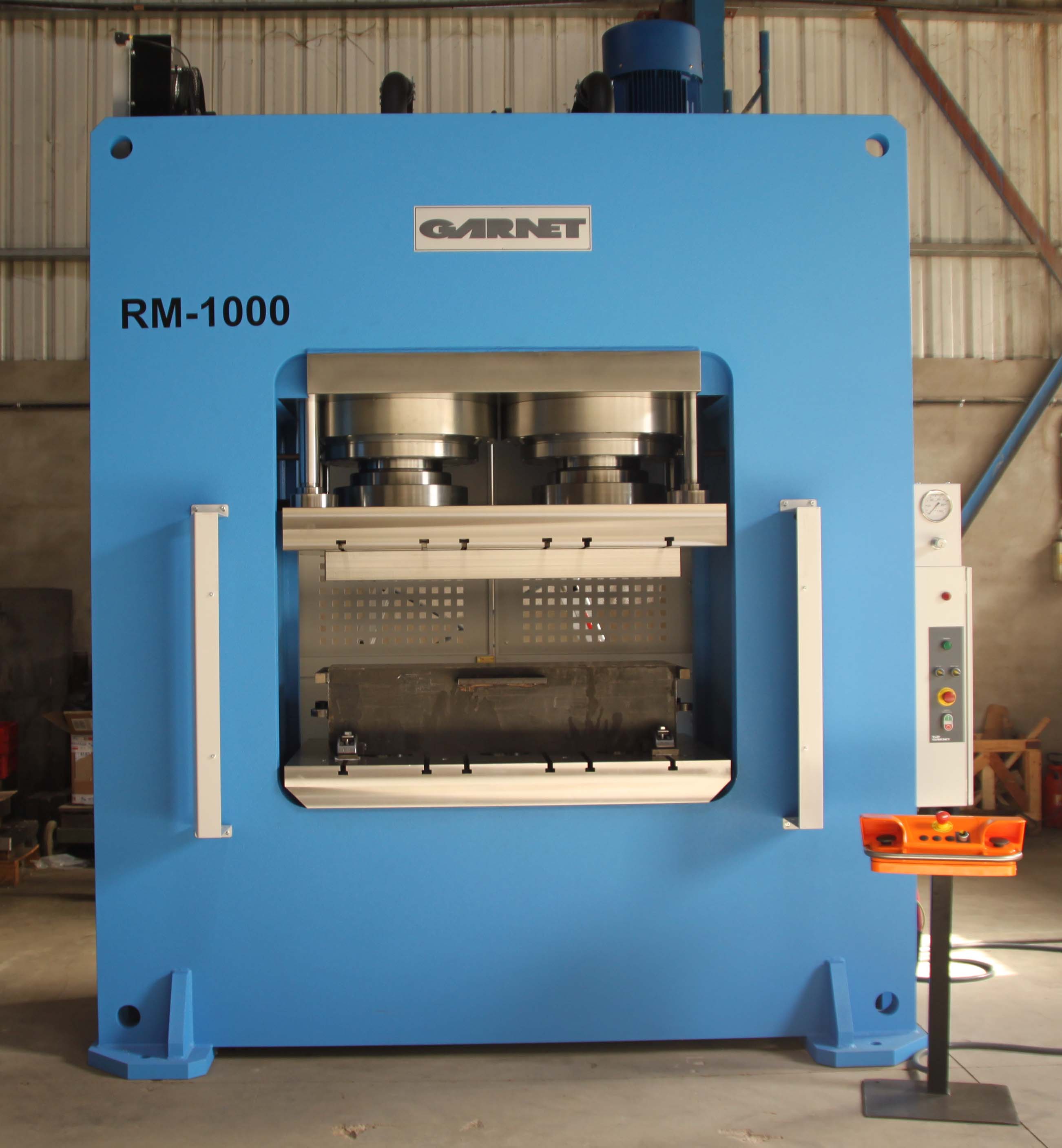

Hidrogarne introduces its latest innovation in hydraulic presses the  model RM-1000 specially designed for cold forming.

Description

  • Rigid structure with closed sides machined and stabilized after welding and constructed with ST-52/3 steel.
  • Total power: 1000 tonnes
  • Top table of 1.450 x 900 mm with T grooves.
  • Two cylinder of 500 tonnes each one.
  • Robust fixed bed created to withstand extreme loads well above its nominal.
  • Bottom table of 1450 x 960 mm with T grooves.
  • Stroke endings placed at the right side, it allows to regulate the top and bottom stroke and change the speed.
  • Hydraulic group with one speed, it has installed prefilling valves to do a faster approach of the upper table.
  • Operated by two hand control with level IV security module
  • Electrical control panel with a selector for manual or automatic operation and 1 or 2 cylinder speed selector

Characteristics

  • Main Motor 50 HP
  • Hydraulic Pump DENISON-PARKER.
  • Approach speed 60 mm / sec
  • Working speed 4mm/seg
  • Return speed 90 mm / sec
  • Cooling system with radiator air-oil
  • Electro-valves and manoeuvre BOSCH REXROTH .
  • Fast system using pre-filling valves BOSCH REXROTH.
  • Front pressure regulation.
  • Gauge in tones

Safety

  • Security module.
  • Emergency stop “Z”.
  • Back protections with security doors and micro.
  • Sick front light guards
  • It’s fulfil CE regulations
