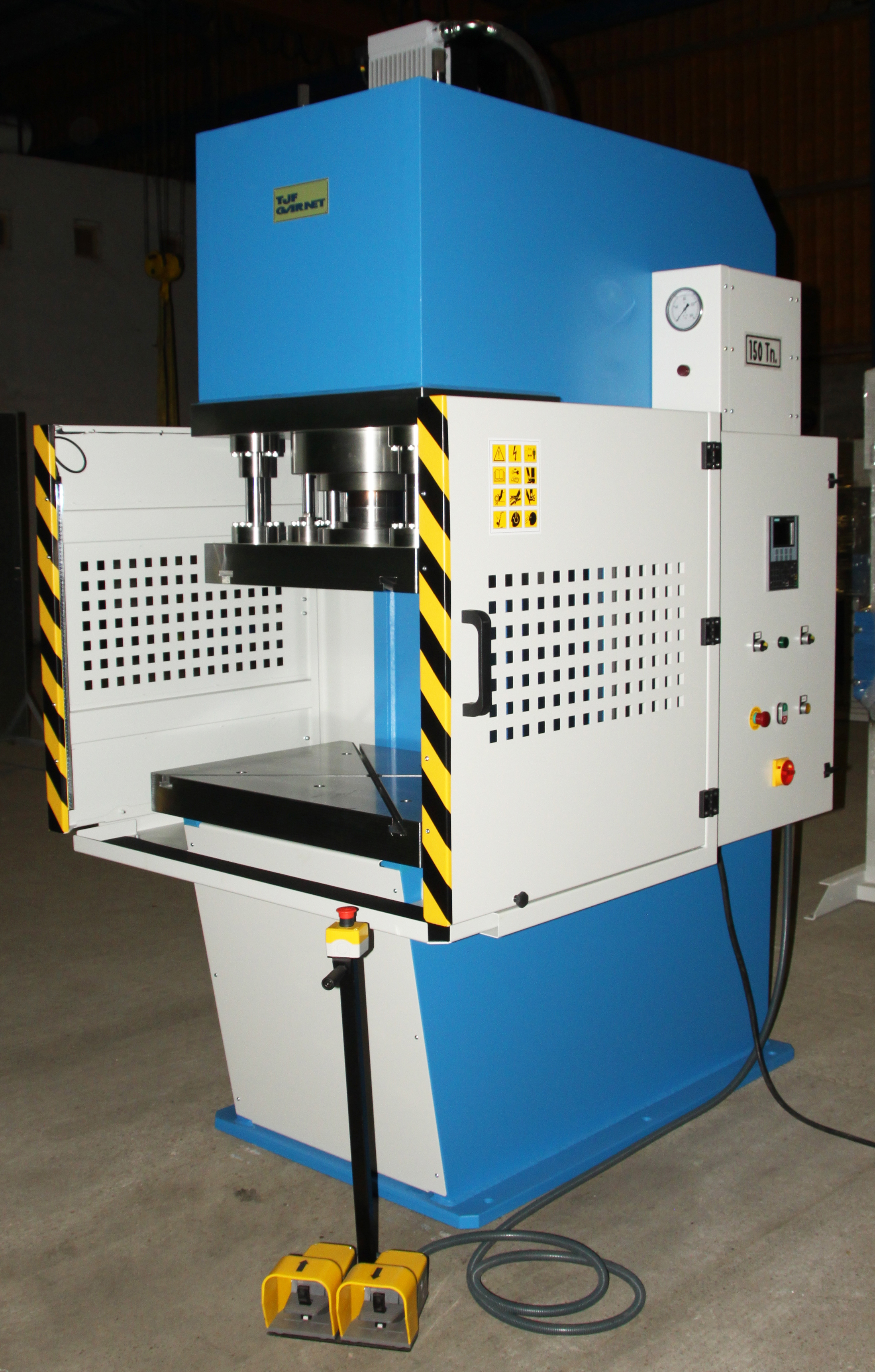

HYDRAULIC PRESS HIDROGARNE CM-150



DESCRIPTION:
– Made with a C frame structure electro-welded and machined after welding.
– Lower table with « T » machined grooves.
– Top table with « T » grooves and two side cylinders quick approach
– Single acting cylinder.
– Hydraulic group with 2 speeds and pre-filling valve.
– Operated by two electric pedals with low electric voltage.
– Manual or automatic operation, with 1 or 2 speed
– PLC with programming screen and memories
Upper bound (linear transducer)
Lower bound (linear transducer)
Bound change speed (linear transducer)
Maximum speed (flow proportional)
Maximum pressing pressure (pressure transducer)
– Manometer in tons.
– Meets the CE safety standards.

STANDARD FEATURES:
– Power 150 TN
– Motor power 15 HP
– Piston stroke 250 mm
– Maximum pressure 320 bar
– Approach speed 200 mm / sec
– Working speed 6.0 mm / sec
– Return speed 150 mm / sec
– Vertical Light 500 mm
– Throat depth 375 mm

HYDRAULIC UNIT:
– DENISON-PARKER pump.
– Front pressure regulator with glycerine manometer.
– Cooler with Air-oil
– Pressure and manoeuvre electro valves REXROTH
– Prefilling valves.

– Side guards with security opening and frontal light barriers with level IV.
– TELEMECANIQUE security module.
– Emergency stops « Z ».
